Single Shut Off Pneumatic Quick Connect Plug 'I' Series For Industrial Interchange

Features:

Single Shut Off Pneumatic Quick Connect Plug 'I' Series are interchangeable with Industrial series couplings
Single Shut Off Pneumatic Quick Connect Plug 'I' Series have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
Single Shut Off Pneumatic Quick Connect Plug 'I' Series is available in 1/4, 3/8, 1/2 body size.
Single Shut Off Pneumatic Quick Connect Plug 'I' Series Standard seal material is nitrile. See the Coupling Selection and Ordering information guide at the beginning of Section A and the Fluid Compatibility chart at the end of this catalog for optional materials

Specifications

Plug

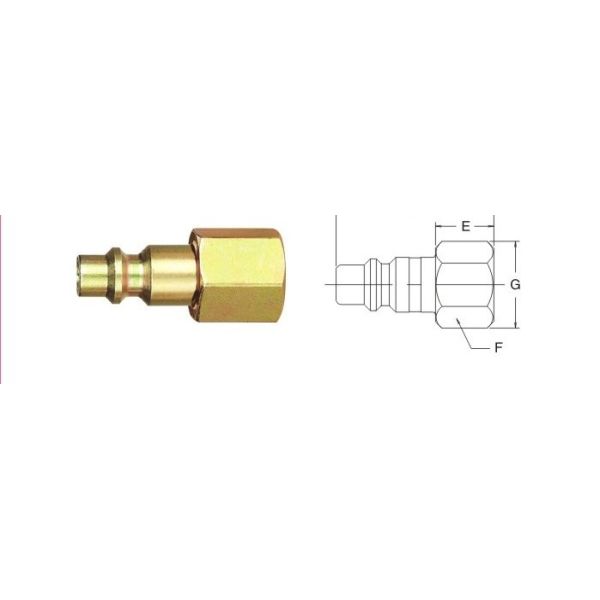

Female Pipe Thread

Single Shut Off Pneumatic Quick Connect Plug , Industrial Interchange Pneumatic Quick Coupling

Body Size(In.)	Part No. Brass	Part No. Steel	Thread size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Exposed Length	Dimensions(in.) Hex size	Dimensions(in.) Largest Diameter
				D	E	F	G
1/4	IPF2-N01	IPF2-N01-S	1/8-27	1.38	0.61	0.50	0.58
1/4	IPF2-N02	IPF2-N02-S	1/4-18	1.56	0.80	0.62	0.72
1/4	IPF2-N03	IPF2-N03-S	3/8-18	1.60	1.83	0.81	0.94
3/8	IPF3-N02	IPF3-N02-S	1/4-18	1.60	0.65	0.62	0.72
3/8	IPF3-N03	IPF3-N03-S	3/8-18	1.69	0.74	0.61	0.94
3/8	IPF3-N04	IPF3-N04-S	1/2-14	1.84	0.90	1.00	1.16
1/2	IPF4-N03	IPF4-N03-S	3/8-18	2.03	0.79	0.81	0.94
1/2	IPF4-N04	IPF4-N04-S	1/2-14	2.25	1.01	1.00	1.16
1/2	IPF4-N06	IPF4-N06-S	3/4-14	2.38	1.13	1.25	1.44

Male Pipe Thread

Single Shut Off Pneumatic Quick Connect Plug , Industrial Interchange Pneumatic Quick Coupling

Body Size(In.)	Part No. Brass	Part No. Steel	Thread size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Exposed Length	Dimensions(in.) Hex size	Dimensions(in.) Largest Diameter
				D	E	F	G
1/4	IPM2-N01	IPM2-N01-S	1/8-27	1.56	0.80	0.50	0.58
1/4	IPM2-N02	IPM2-N02-S	1/4-18	1.72	0.95	0.56	0.65
1/4	IPM2-N03	IPM2-N03-S	3/8-18	1.81	1.05	0.69	0.80
3/8	IPM3-N01	IPM3-N01-S	1/8-27	1.72	0.77	0.62	0.72
3/8	IPM3-N02	IPM3-N02-S	1/4-18	1.88	0.93	0.62	0.72
3/8	IPM3-N03	IPM3-N03-S	3/8-18	1.91	0.96	0.69	0.80
3/8	IPM3-N04	IPM3-N04-S	1/2-14	2.12	1.18	0.88	1.02
1/2	IPM4-N03	IPM4-N03-S	3/8-18	2.31	1.07	0.69	0.79
1/2	IPM4-N04	IPM4-N04-S	1/2-14	2.48	1.22	0.88	1.01
1/2	IPM4-N06	IPM4-N06-S	3/4-14	2.53	1.29	1.13	1.30

Standard Hose Barb

Body Size(In.)	Part No. Brass	Part No. Steel	Thread size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Exposed Length	Dimensions(in.) Largest Diameter
				D	E	F
1/4	IPH2-1/4	IPH2-1/4-S	1/4	2.09	1.33	0.55
1/4	IPH2-5/16	IPH2-5/16-S	5/16	2.09	1.33	0.55
1/4	IPH2-3/8	IPH2-3/8-S	3/8	2.09	1.33	0.55
3/8	IPH3-3/8	IPH3-3/8-S	3/8	2.19	1.24	0.62
3/8	IPH3-1/2	IPH3-1/2-S	1/2	2.19	1.52	0.68
1/2	IPH4-3/8	IPH4-3/8-S	3/8	2.53	1.29	0.68
1/2	IPH4-1/2	IPH4-1/2-S	1/2	2.53	1.57	0.68
1/2	IPH4-3/4	IPH4-3/4-S	3/4	3.06	1.91	0.93
