Shut - Off Pneumatic Quick Connect Coupling Steel Single I Series WP 300psi

Product Categories

Cixi Qianyi Pneumatic & Hydraulic Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : QPE

Model Number : A Series / ARO 210 intherchange

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000pcs/week, according the capacity of the assbemly workshop

Delivery Time : Within 30 days or as per customers' requirement.

Packaging Details : Standard exporting package or as per customers' requests.

Material : Steel

Size : 1/4"-1/2"

WT : -40C to +250C

WP : 300psi

Standard : Industrial Interchange

Locking : 6 balls / locking

Contact Now

Steel Pneumatic Single Shut-off Couplings 'I' Series For Industrial Interchange

Features:

Pneumatic single shut-off couplings I series coupling are interchangeable with Industrial series couplings

Pneumatic single shut-off couplings I series couplings have a full opening tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
Pneumatic single shut-off couplings The I Series is available in 1/4, 3/8, 1/2 body size.
Pneumatic single shut-off couplings Standard seal material is nitrile. See the Coupling Selection and Ordering information guide at the beginning of Section A and the Fluid Compatibility chart at the end of this catalog for optional materials

Specifications

Manual Couplers With 6 Locking BOLLS

Female Pipe Thread

Shut - Off Pneumatic Quick Connect Coupling Steel Single I Series WP 300psi

Body Size(In.)	Part No.	Thread size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Hex size	Dimensions(in.) Largest Diameter
			A	B	C
1/4	ISF2-N01	1/8-27	1.83	0.75	0.88
1/4	ISF2-N02	1/4-18	1.83	0.75	0.88
1/4	ISF2-N03	3/8-18	1.95	0.81	0.94
3/8	ISF3-N02	1/4-18	2.22	0.88	1.06
3/8	ISF3-N03	3/8-18	2.28	0.88	1.06
3/8	ISF3-N04	1/2-14	2.55	1.00	1.16
1/2	ISF4-N03	3/8-18	2.74	1.00	1.19
1/2	ISF4-N04	1/2-14	2.96	1.00	1.19
1/2	ISF4-N06	3/4-14	3.19	1.25	1.4

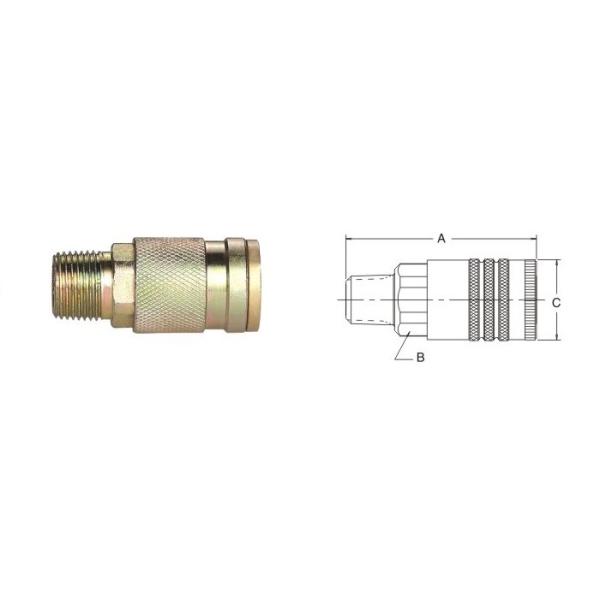

Male Pipe Thread

Body Size(In.)	Part No.	Thread size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Hex size	Dimensions(in.) Largest Diameter
			A	B	C
1/4	ISM2-N01	1/8-27	1.89	0.75	0.88
1/4	ISM2-N02	1/4-18	2.05	0.75	0.88
1/4	ISM2-N03	3/8-18	2.08	0.75	0.88
3/8	ISM3-N02	1/4-18	2.36	0.88	1.06
3/8	ISM3-N03	3/8-18	2.39	0.88	1.06
3/8	ISM3-N04	1/2-14	2.55	0.88	1.06
1/2	ISM4-N03	3/8-18	2.93	1.00	1.19
1/2	ISM4-N04	1/2-14	3.08	1.00	1.19
1/2	ISM4-N06	3/4-14	3.21	1.13	1.30

Standard Hose Barb

Body Size(In.)	Part No.	Hose I.D	Dimensions(in.) Overall Length	Dimensions(in.) Hex size	Dimensions(in.) Largest Diameter
			A	B	C
1/4	ISH2-1/4	1/4	2.49	0.75	0.88
1/4	ISH2-5/8	5/16	2.49	0.75	0.88
1/4	ISH2-3/8	3/8	2.49	0.75	0.88
3/8	ISH3-3/8	3/8	2.86	0.88	1.06
3/8	ISH3-1/2	1/2	3.08	0.88	1.06
1/2	ISH4-3/8	3/8	3.37	1.00	1.19
1/2	ISH4-1/2	1/2	3.62	1.00	1.19
1/2	ISH4-3/4	3/4	3.96	1.00	1.19
