Threaded To Connect Hydraulic Quick Coupling , Faster Interchange Hydraulic Quick Coupler

Brand Name : QPE

Model Number : KVV

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000pcs/week, according the capacity of the assembly workshop

Delivery Time : Within 30 days or as per customers' requirement.

Packaging Details : Standard exporting package or as per customers' requests.

Material : Carbon steel

Size : 1/4' - 1

Thread : BSP OR NPT

Connection : Thread lock

Standard : Compatible with faster standards

WP : Working pressures to 3625 psi

Contact Now

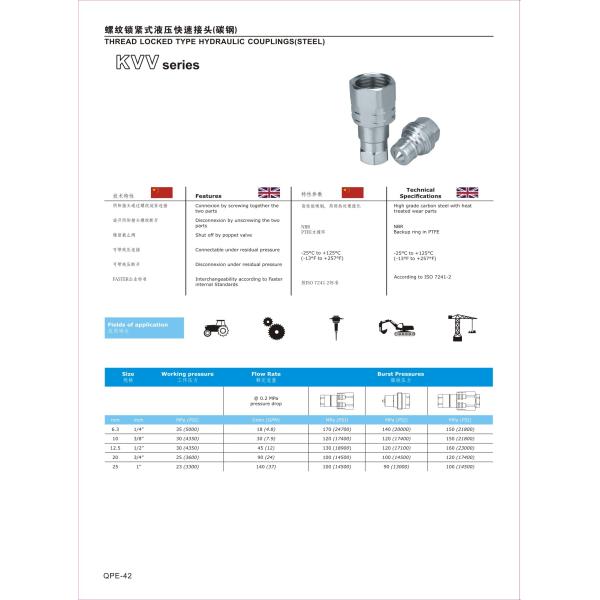

Threaded To Connect Hydraulic Quick Coupling For Faster Interchange, KVV Sereis

Feature:

1. Connexion by screwing together the two parts

2. Disconnexion by unscrewing the two parts

3. Shut off by poppet valve

4. Connectable under residual pressure

5. Disconnexion under residual pressure

6. Interchangeability according to Faster Standards

Technical Specification

1. High grade carbon steel with heat treated wear parts

2. NBR Backup ring in PTFE

3. Temperature Range (-25°C to +125°C)

4. Pressure connected tested According t ISO 7241-2 specifications

Fields of application

Threaded To Connect Hydraulic Quick Coupling For Faster Interchange, KVV Sereis coupling is mainly applied for Agriculture, Industry, hydraulic tools, Earth moving, Building & Construction.

Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (-25°C to +125°C)
Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)
KVV -02	DN6.3	BSPT 1/4	BSPP1/4	NPT1/4	1/4	5000	18
KVV -03	DN10	BSPT 3/8	BSPP3/8	NPT3/8	3/8	4350	30
KVV -04	DN12.5	BSPT 1/2	BSPP 1/2	NPT1/2	1/2	4350	45
KVV -06	DN20	BSPT 3/4	BSPP 3/4	NPT3/4	3/4	3600	90
KVV -08	DN25	BSPT 1	BSPP 1	NPT1	1	3300	140
